2026 RXV 2 Specs

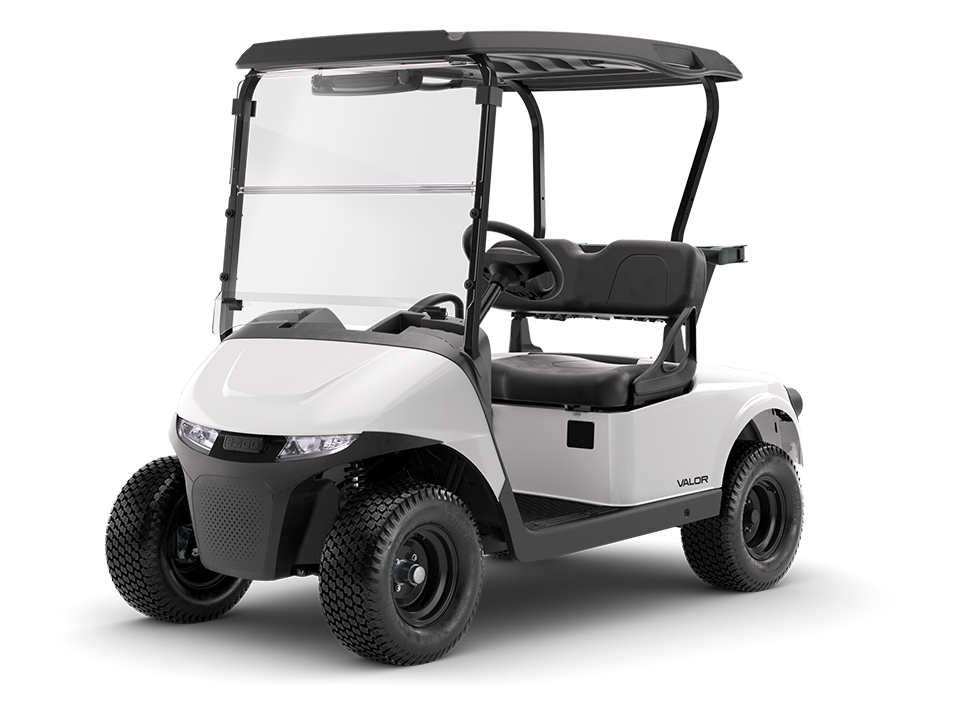

MY26 RXV 2 Valor S 48V |

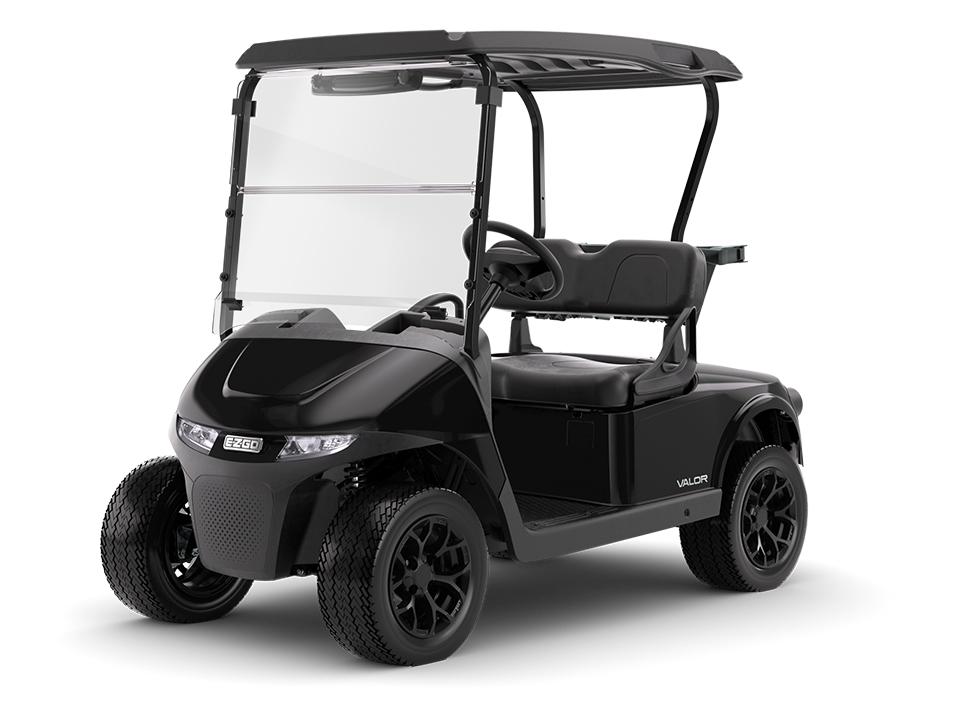

MY26 RXV 2 Valor S+ 48V |

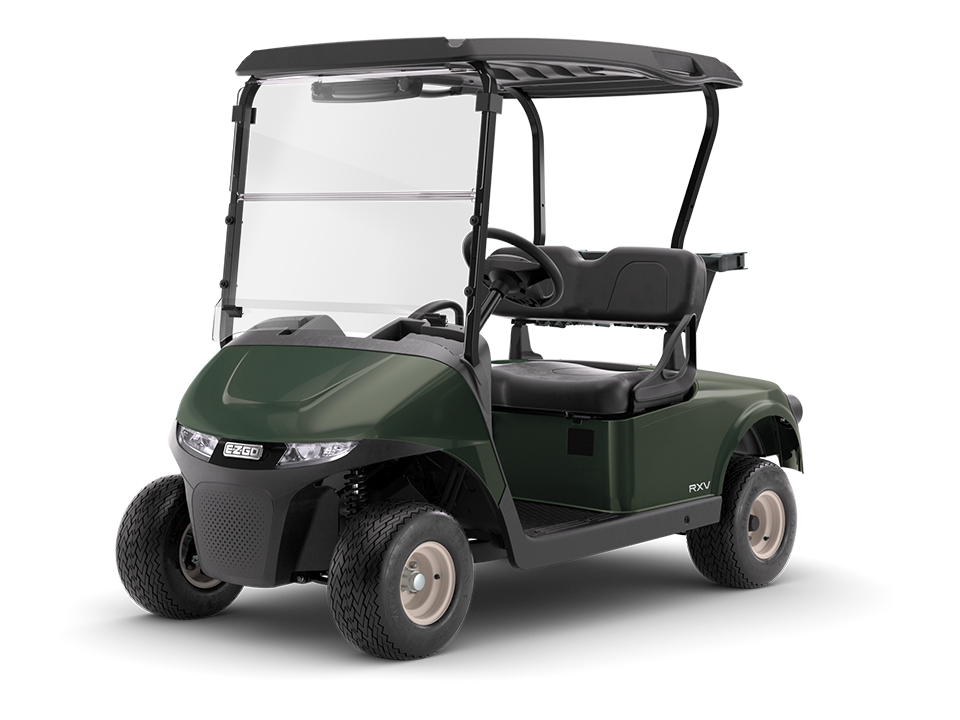

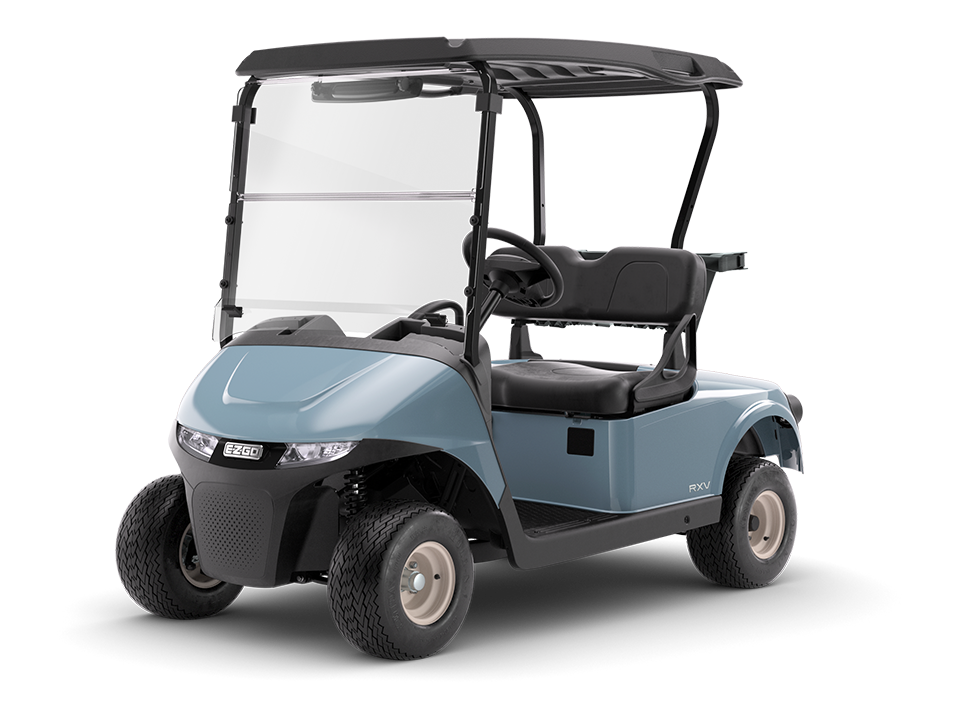

MY26 RXV 2 Freedom ELiTE Lithium |
Powertrain48V AC |
Powertrain48V AC |
PowertrainELiTE Lithium |
Seats2 Passengers |
Seats2 Passengers |
Seats2 Passengers |
Starting MSRPFor as low as $124/month |
Starting MSRPFor as low as $132/month |
Starting MSRPFor as low as $149/month |
Colors
|
Colors
|
Colors
|
Overall Length93 in (236 cm) |
Overall Length93 (236 cm) |
Overall Length93 in. (236 cm) |
Overall Width47.0 in (119 cm) |
Overall Width47.0 in (119 cm) |
Overall Width46.5 in. (118 cm) |
Overall Height (w/o Roof)46.7 in (119 cm) |
Overall Height (w/o Roof)46.7 (119 cm) |
Overall Height (w/o Roof)47 in. (119 cm) |
Overall Height (w/ Roof)69.5 (177 cm) |
Overall Height (w/ Roof)69.5 (177 cm) |
Overall Height (w/ Roof)70.5 in. (179 cm) |
Wheel Base65.7 (167 cm) |
Wheel Base65.7 (167 cm) |
Wheel Base65.3 in. (166 cm) |
Front Wheel Track35.5 (90 cm) |
Front Wheel Track35.5 (90 cm) |
Front Wheel Track34.6 in. (88 cm) |
Rear Wheel Track38 (97 cm) |
Rear Wheel Track38 (97 cm) |
Rear Wheel Track37.1 in. (94 cm) |
Ground Clearance4.5 in (11 cm) |
Ground Clearance4.5 in (11 cm) |
Ground ClearanceN/A |
Power SourceAC Induction |
Power SourceAC Induction |
Power Source56.7 V Max |
Valve TrainN/A |
||
Fuel SystemN/A |
||
Horsepower/kW4.4 hp (3.3 Kw) Continuous |
Horsepower/kW4.4 hp (3.3 Kw) Continuous |
Horsepower/kW4.4 hp (3.3 kW) Continuous |
Electrical System48 VDC |
Electrical System48 VDC |
Electrical System48V Primary, 12V Auxiliary |
Key/Pedal StartPedal |
Key/Pedal StartPedal |
Key/Pedal StartPedal Start |
Air CleanerN/A |
||
LubricationN/A |
||
Cooling SystemN/A |
||
Oil FilterN/A |
||
Fuel CapacityN/A |
||
Speed Controller250 Amp Solid State Controller |
Speed Controller250 Amp Solid State Controller |
Speed Controller235 Amp AC Controller |
DrivetrainDirect-Drive AC Induction Motor |
||
TransaxleDifferential with Helical Gears |
TransaxleDifferential with Helical Gears |
TransaxleLimited Slip Differential |
Gear SelectionForward-Neutral-Reverse |
Gear SelectionForward-Neutral-Reverse |
Gear SelectionN/A |
Rear Axle Ratio16.99:1 |
||
Batteries (Qty/Type)Four, 12 Volt Lead Acid Deep Cycle |
Batteries (Qty/Type)Four, 12 Volt Lead Acid Deep Cycle |
Batteries (Qty/Type)One, Core-56.7V Max Lithium |
Battery Charger48 VDC QE, 120 VAC, UL & CSA |
Battery Charger48 VDC QE, 120 VAC, UL & CSA |
Battery ChargerN/A |
Dry Weight669 lb (303 kg) |
Dry Weight669 lb (303 kg) |
Dry WeightN/A |
Curb Weight969 lb (440 kg) |
Curb Weight969 lb (440 kg) |
Curb Weight651 lb (295 kg) |
Load Capacity800 lb (363 kg) |
||
Outside Clearance19.2 ft (5.8 m) |
Outside Clearance19.2 ft (5.8 m) |
Outside Clearance19.2 ft (5.9 m) |
Speed19 mph ± 0.5 mph (31 kph ± 0.8 kph) |
||
RangeN/A |
||
SteeringDouble-Ended Rack and Pinion |
SteeringDouble-Ended Rack and Pinion |
SteeringDouble Ended Rack & Pinion |
SuspensionIndependent A-Arm Coil Over Shock (Front) - Mono-Leaf Springs with Hydraulic Shocks (Rear) |
SuspensionIndependent A-Arm Coil Over Shock (Front) - Mono-Leaf Springs with Hydraulic Shocks (Rear) |
Suspension"Independent A-Arm Coil Over Shock (Front) Mono-Leaf Springs With Hydraulic Shocks (Rear)" |
Service BrakeInduction Motor |
||
Parking BrakeAutomatic Electro-Magnetic |
||
TiresKenda K500 Tire on 10” Black Steel Wheel (Connect Package) Hole-N-One Tire on 12” Rogue Alloy Wheel (Cruiser Package) |
TiresKenda K500 Tire on 10” Black Steel Wheel (Connect Package) Hole-N-One Tire on 12” Rogue Alloy Wheel (Cruiser Package) |
TiresN/A |
FrameWelded Steel with Powder-Coat Protection |
FrameWelded Steel with Powder-Coat Protection |
FrameWelded Steel. DuraShield™ Powder Coat |
Body & FinishInjection Molded TPO |
Body & FinishInjection Molded TPO |
Body & FinishInjection molded TPO |
*Please note that there are variations in specs of packages. Please refer to the attached sell sheet or your dealer for any specific questions.
