MY25 Freedom RXV

$8,674
Overview
Highlights
Powertrains
Models
Black RXV 4
Freedom RXV ELiTE

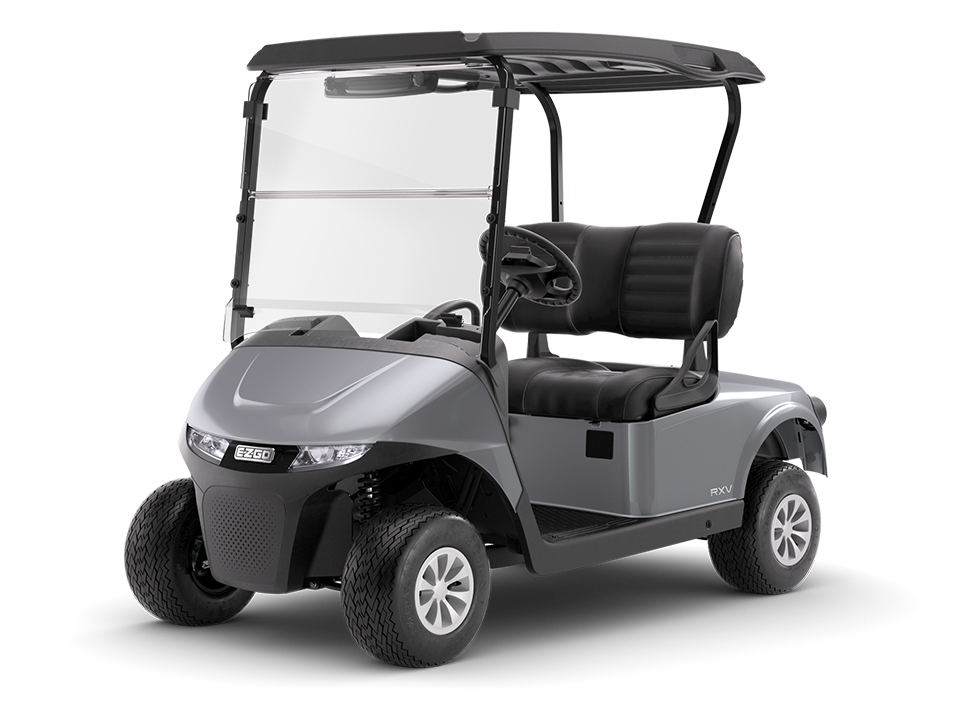

MY25 Freedom RXV

Shown on Freedom RXV ELiTE Lithium

Color: Bright White

Request A Quote
Search Inventory
  • Great For...
    Golf or Retirement Community, Neighborhood or Community Use, Second Home or Vacation Home
  • Starting MSRP
    $11,999 For as low as $210.00/month
  • Powertrain
    ELiTE Lithium
  • Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
Explore Specs

MY25 Freedom RXV Specifications

Explore the details that'll give your golfers a superior experience on the course.

  • Dimensions
      Freedom RXV ELiTE Lithium
    Overall Length 94.5 in (240 cm)
    Overall Width 47.0 in (119 cm)
    Overall Height (w/o Roof) 46.5 in (118 cm)
    Overall Height (w/ Roof) 69.5 in (177 cm)
    Wheel Base 66 in (168 cm)
    Front Wheel Track 34.5 in (88 cm)
    Rear Wheel Track 38.5 in (98 cm)
    Ground Clearance 4 in (10 cm)
  • Power
      Freedom RXV ELiTE Lithium
    Power Source 56.7V
    Valve Train N/A
    Fuel System N/A
    Horsepower/kW 4.4 hp (3.3 kW) Continuous
    Electrical System 56-Volt AC
    Key/Pedal Start Pedal
    Air Cleaner N/A
    Lubrication N/A
    Cooling System N/A
    Oil Filter N/A
    Fuel Capacity N/A
    Speed Controller 235-amp Solid-State AC Controller
    Drivetrain Motor Shaft Direct Drive
    Transaxle Limited Slip Differential
    Gear Selection Dash Mounted FNR/Key Switch
    Rear Axle Ratio 16.99:1
    Batteries (Qty/Type) ELiTE 2.2, 56.7V Lithium
    Battery Charger ELiTE Light World Charger 120/230 VAC, 10' DC Cord
  • Performance
      Freedom RXV ELiTE Lithium
    Dry Weight 615 lb (279 kg)
    Curb Weight 662 lb (300 kg)
    Load Capacity 500 lb (227 kg) (2 Passenger) or 800 lb (360 kg) (4 Passenger)
    Outside Clearance 19.2 ft (5.8 m)
    Speed 19.0 mph (31 kph)
    Range ± 0.5 mph (± 0.8 kph)
  • Steering & Suspension
      Freedom RXV ELiTE Lithium
    Steering Double-Ended Rack and Pinion
    Suspension Front: Independent A-Arm Coil-Over Shock, Rear: Mono-Leaf Spring With Hydraulic Shocks
    Service Brake Induction Motor
    Parking Brake Automatic Electro-Magnetic
    Tires 18 x 8.50-8 (4-ply rated)
  • Body & Chassis
      Freedom RXV ELiTE Lithium
    Frame Welded Steel with Durashield Powder-Coat Protection
    Body & Finish Injection Molded TPO

    • *Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

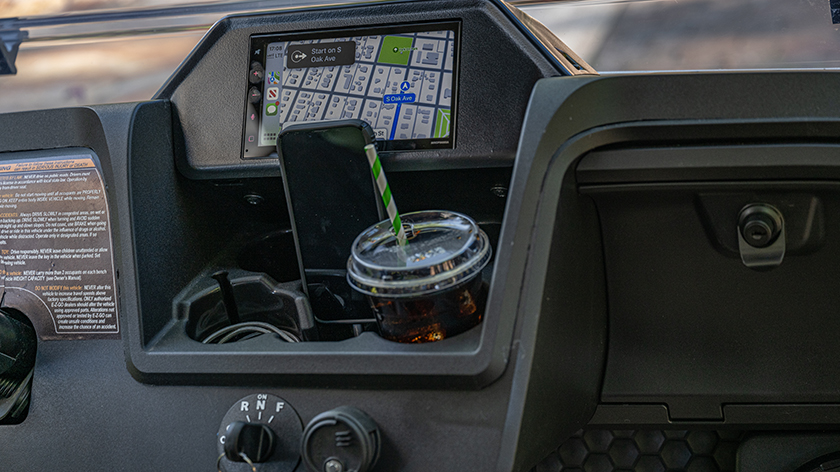

A zoomed in view of an E-Z-GO frontend.

Modern Front End & Dash

The Freedom RXV gives you a more streamlined experience for greater ease efficiency wherever you go.

E-Z-GO Freedom RXV Golf Cart

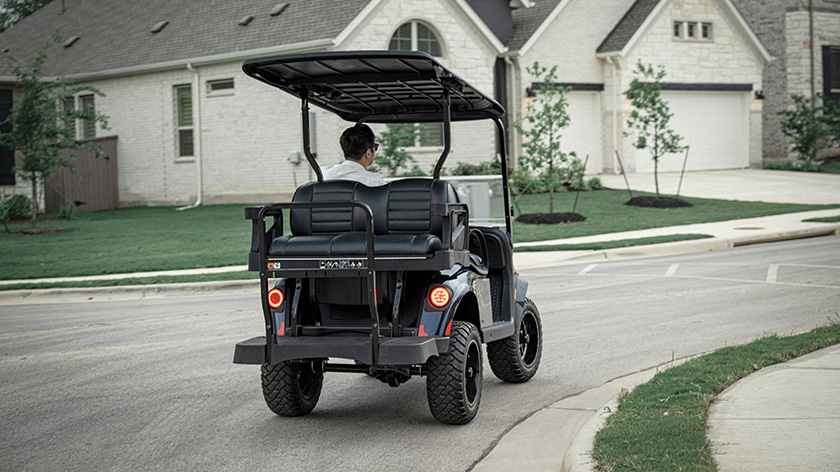

Modular Canopy

Protect yourself from the elements without sacrificing style. The modular canopy features a sleek design with a built-in water management system and integrated hand grasps. Available on 4-passenger vehicles only.

RXV 2 Freedom ELiTE

Endless Aftermarket Customizations

Make the Freedom RXV yours with E-Z-GO's aftermarket accessories. With lights, speakers, lift kits, and more, every vehicle can be made specifically for you.

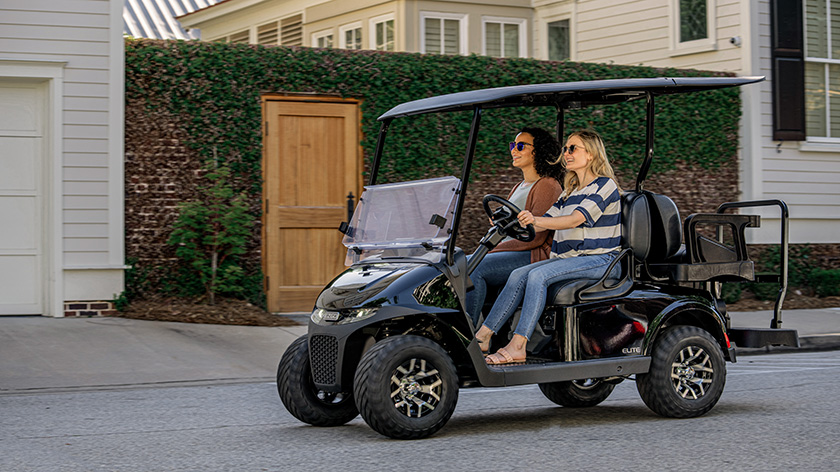

Two women board an E-Z-GO Freedom RXV vehicle.

EX1 Gas Engine

With more power behind the throttle, the EX1 gas engine gives you an unforgettable ride. Steep hills are problems of the past, and with lower wear parts, you can ride worry-free.

Available Powertrains

Explore our industry-leading powertrains – each with unique advantages to enhance your life.

  • Gas Powertrain Icon

    EX1 Gas Engine

    Purpose-built for golf carts, the EX1 delivers smooth acceleration, best-in-class fuel economy, and a refined, quiet ride.

    Learn More
  • Electric Powertrain Icon

    ELiTE Lithium Powertrain

    Powered by Samsung SDI technology, ELiTE lithium batteries offer zero maintenance, fast charging, and consistent, long-lasting power.
