MY24 Express S4

$12,609
Overview
Powertrains
Models
E-Z-GO Special Edition Express 4 Spring Green
Express S4

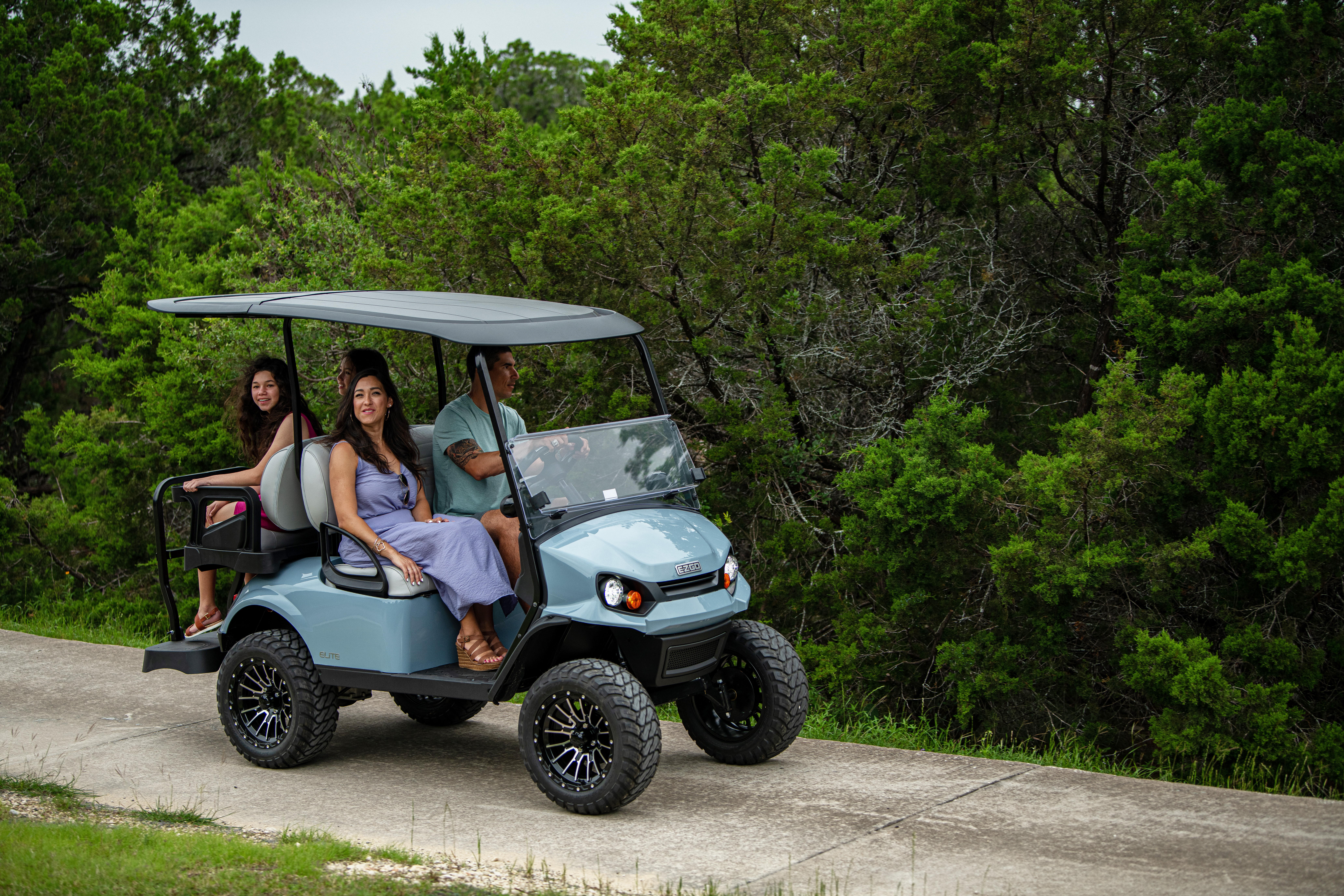

MY24 Express S4

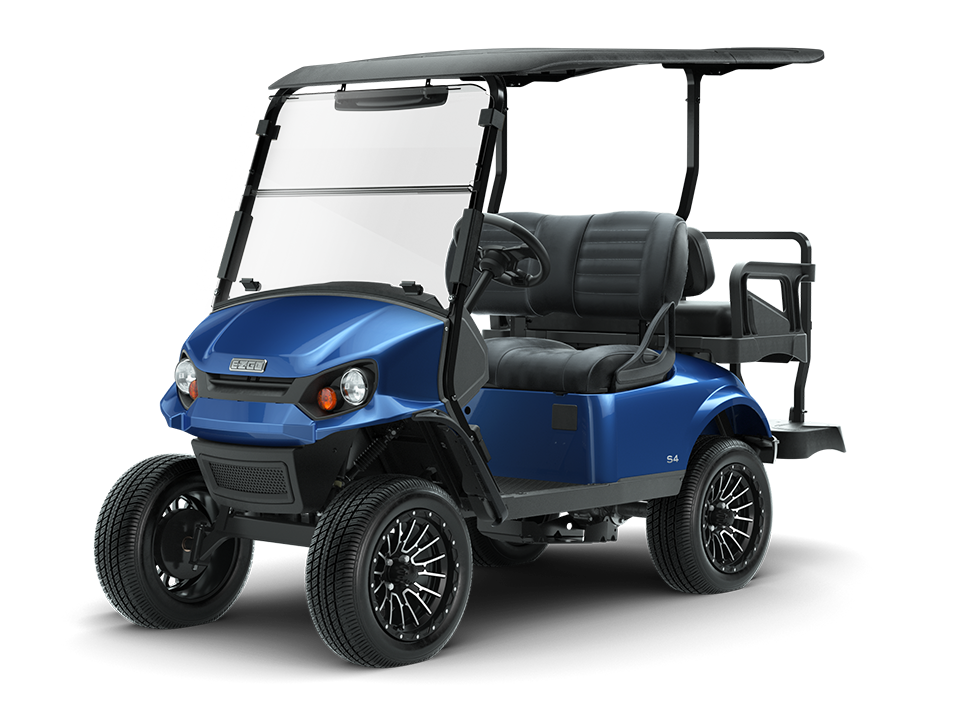

Shown on MY24 Express S4 ELiTE Lithium

Color: Electric Blue

Explore Available Models
Search Inventory
  • Great For...
    Neighborhood or Community Use, Recreation, Campgrounds, Fishing & Parks, Second Home or Vacation Home
  • Starting MSRP
    $12,609
  • Powertrains
    ELiTE Lithium Gas
  • Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
Explore Specs

MY24 Express S4 Specifications

Explore the details that'll give your golfers a superior experience on the course.

  • Dimensions
      MY24 Express S4 ELiTE Lithium MY24 Express S4 Gas
    Overall Length 115 in (292 cm) 115.6 in (293 cm)
    Overall Width 49.5 in (124 cm) 48.5 in (123 cm)
    Overall Height (w/o Roof) 52 in (132 cm) 52.5 in (133 cm)
    Overall Height (w/ Roof) 82 in (208 cm) 83 in (210 cm)
    Wheel Base 67.5 in (171 cm) 65.5 in (166 cm)
    Front Wheel Track 37.9 in (96.3 cm) 38.5 in (98 cm)
    Rear Wheel Track 39.2 in (99.6 cm) 38.5 in (98 cm)
    Ground Clearance 7.3 in (18.5 cm) 6 in (15 cm)
  • Power
      MY24 Express S4 ELiTE Lithium MY24 Express S4 Gas
    Power Source 56 Volt DC 4 Cycle 24.5 cu in (401 cc)
    Valve Train
    Fuel System
    Horsepower/kW 11.7 hp (8.7 kW) Peak 13.5 hp (10.1 kW) Exceeds SAE J1940 Std
    Electrical System 56 Volt DC Starter/Generator - Solid State Regulator
    Key/Pedal Start Pedal Start Pedal Start
    Air Cleaner
    Lubrication
    Cooling System
    Oil Filter
    Fuel Capacity
    Speed Controller 235 Amp AC N/A
    Drivetrain Motor Shaft Direct Drive Continuously Variable Transmission (CVT)
    Transaxle Differential with Helical Gears Differential with Helical Gears
    Gear Selection Dash Mounted Forward-Neutral-Reverse Dash Mounted Forward-Neutral-Reverse
    Rear Axle Ratio 17:1 (Forward) 11.47:1 (Forward); 14.35:1 (Reverse)
    Batteries (Qty/Type) Single, 56 V Li-Ion (Standard Configuration) One, 12 Volt Maintenance Free
    Battery Charger 56VDC, 120/230 VAC, UL/CSA, CE N/A
  • Performance
      MY24 Express S4 ELiTE Lithium MY24 Express S4 Gas
    Dry Weight 918 lb (428 kg) (without batteries) 1061 lb (481 kg) (without battery)
    Curb Weight 965 lb (462 kg) 1101 lb (499 kg)
    Load Capacity 800 lb (363 kg) 800 lb (360 kg)
    Outside Clearance 22.8 ft (7.0m) 20.3 ft (6.2m)
    Speed 19 mph (31 kph) max 19 mph (31 kph) max
    Range
  • Steering & Suspension
      MY24 Express S4 ELiTE Lithium MY24 Express S4 Gas
    Steering Self-Compensating Rack and Pinion Self-Compensating Rack and Pinion
    Suspension Leaf Springs with Hydraulic Shock Absorbers Leaf Springs with Hydraulic Shock Absorbers
    Service Brake Rear Wheel Mechanical Self-Adjusting Drum Rear Wheel Mechanical Self-Adjusting Drum
    Parking Brake Self-Compensating, Single Point Engagement Self-Compensating, Single Point Engagement

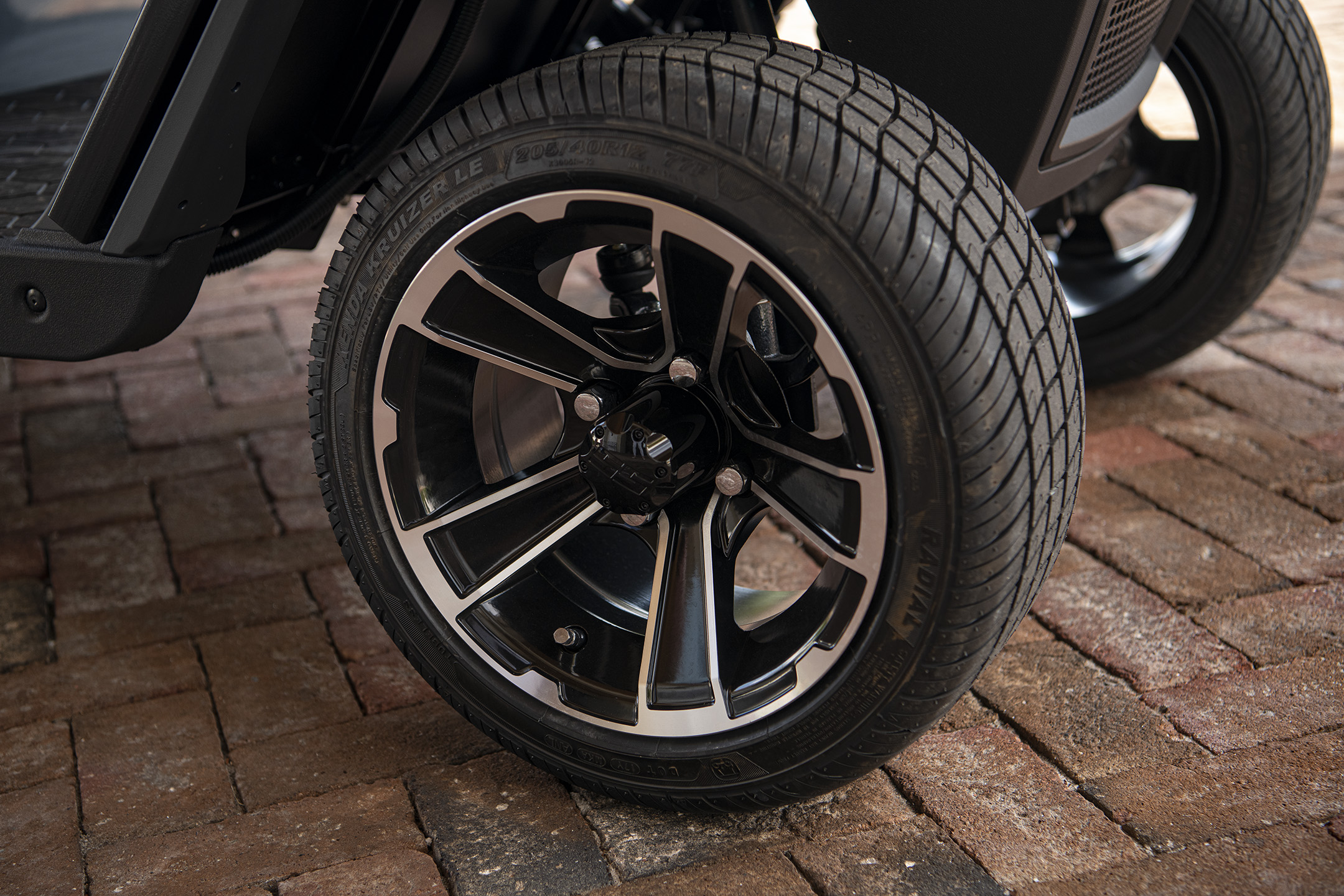

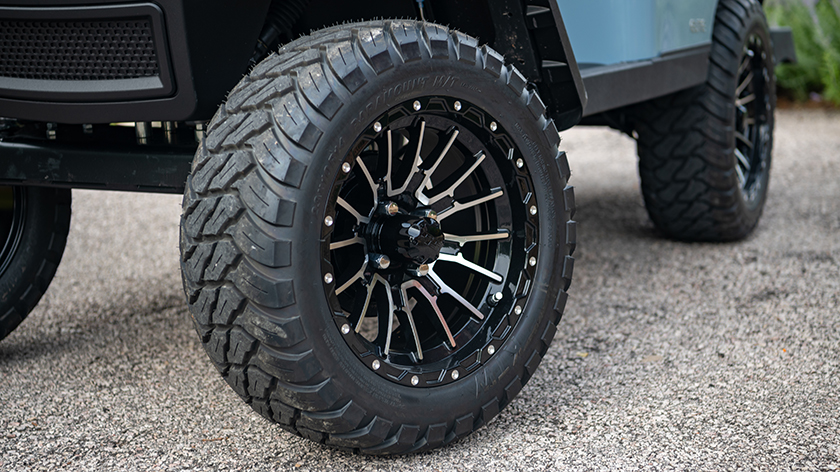

    Tires 185/60 Kruizer on 14-in. SPDR Wheels (Commuter Package), 23x10 Paramount M/T on 14-in. Black SPDR Wheels (Explorer Package) 185/60 Kruizer on 14-in. SPDR Wheels (Commuter Package), 23x10 Paramount M/T on 14-in. Black SPDR Wheels (Explorer Package)
  • Body & Chassis
      MY24 Express S4 ELiTE Lithium MY24 Express S4 Gas
    Frame Welded steel with E-coat & DuraShield powder coat Welded steel with E-coat & DuraShield powder coat
    Body & Finish Injection Molded TPO Injection Molded TPO

    • *Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

Available Powertrains

Explore our industry-leading powertrains – each with unique advantages to enhance your life.

  • Electric Powertrain Icon

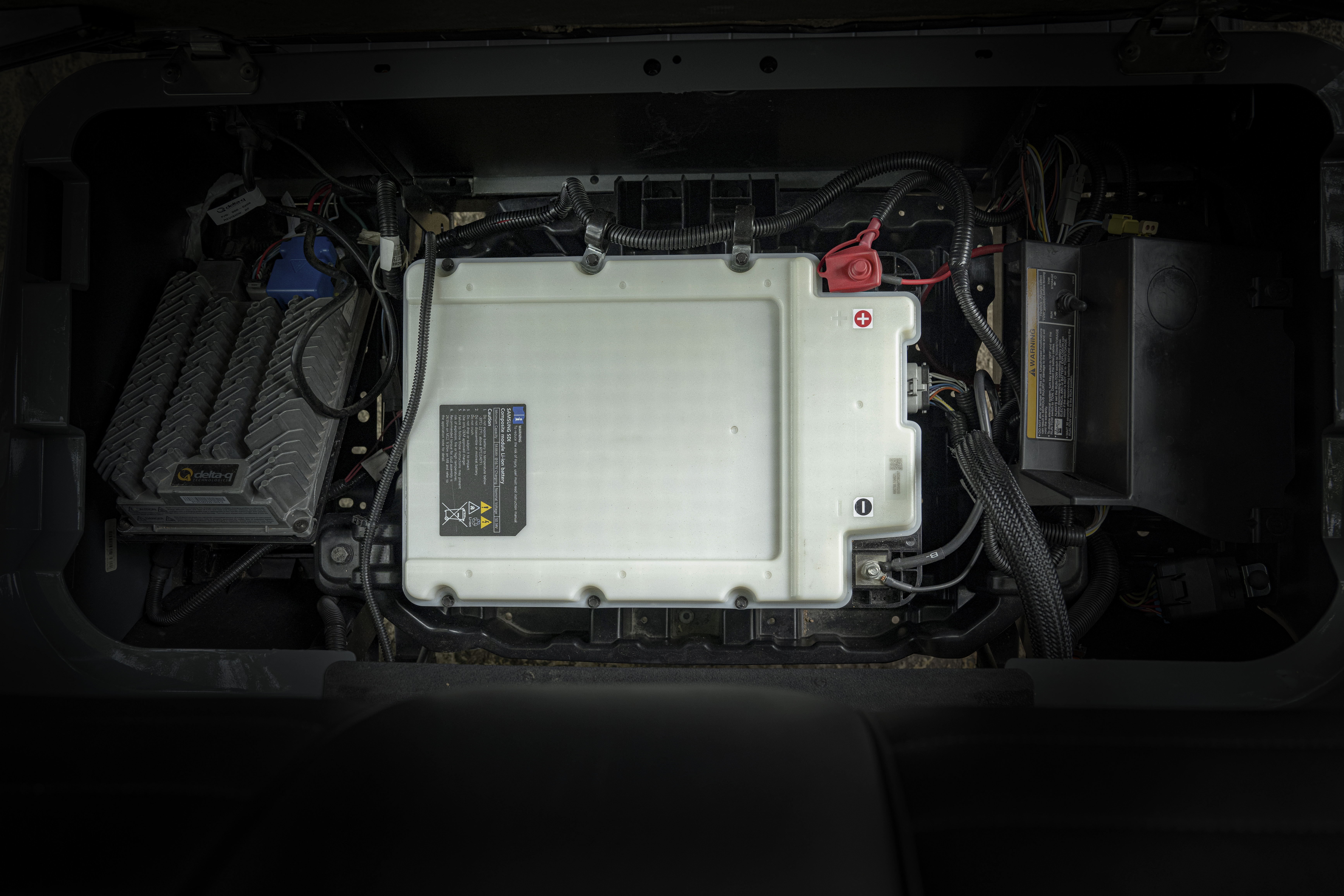

    ELiTE Lithium Powertrain

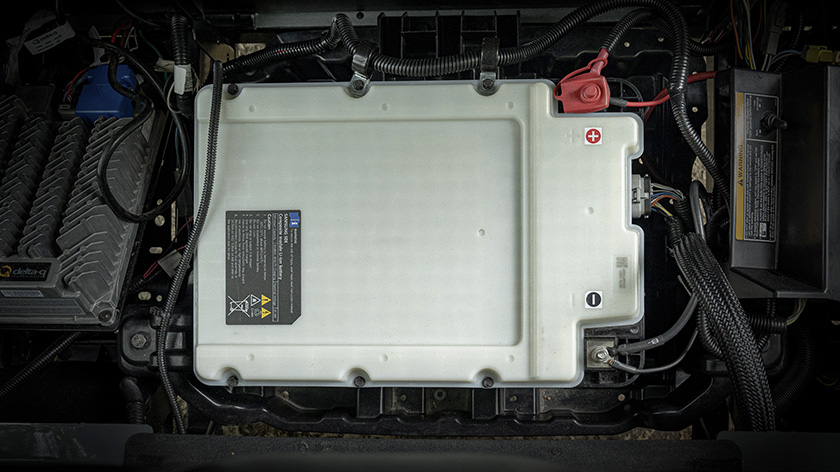

    Powered by Samsung SDI technology, ELiTE lithium batteries offer zero maintenance, fast charging, and consistent, long-lasting power.

    Learn More
  • Gas Powertrain Icon

    EX1 Gas Engine

    Purpose-built for golf carts, the EX1 delivers smooth acceleration, best-in-class fuel economy, and a refined, quiet ride.
