MY24 Freedom RXV

$10,299
Overview
Powertrains
Models
Freedom RXV
Freedom RXV

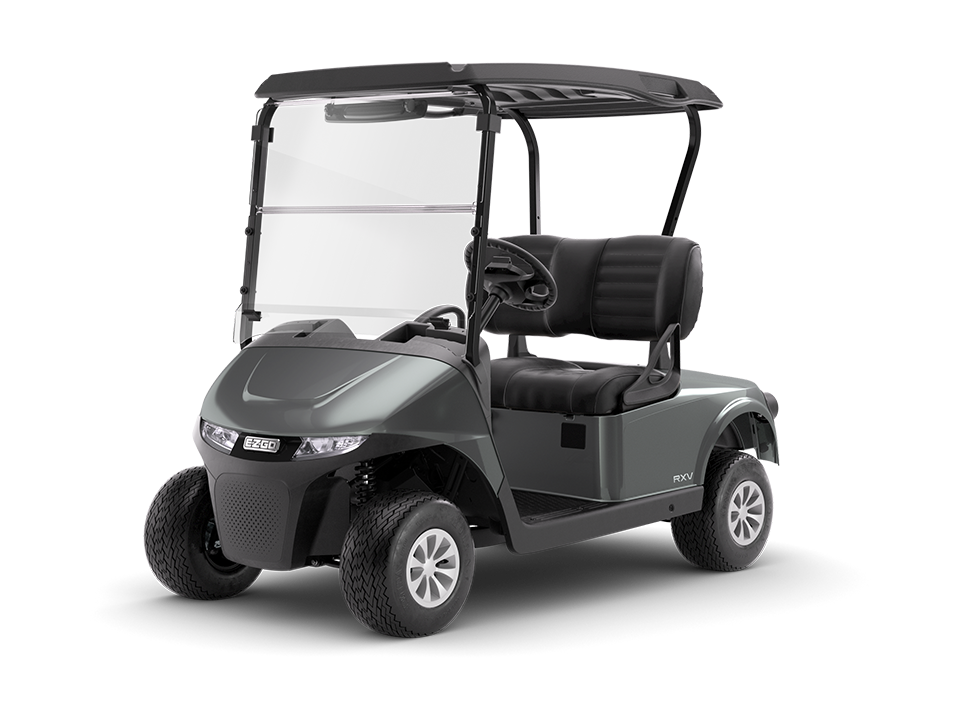

MY24 Freedom RXV

Shown on MY24 Freedom RXV Gas

Color: Bright White

Explore Available Models
Search Inventory
  • Great For...
    Golf or Retirement Community, Neighborhood or Community Use, Second Home or Vacation Home
  • Starting MSRP
    $10,299
  • Powertrains
    ELiTE Lithium Gas
  • Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
Explore Specs

MY24 Freedom RXV Specifications

Explore the details that'll give your golfers a superior experience on the course.

  • Dimensions
      MY24 Freedom RXV Gas MY24 Freedom RXV ELiTE Lithium
    Overall Length 94.5 in (240 cm) 94.5 in (240 cm)
    Overall Width 47.0 in (119 cm) 47.0 in (119 cm)
    Overall Height (w/o Roof) 47.5 in (121 cm) 46.5 in (118 cm)
    Overall Height (w/ Roof) 70.0 in (178 cm) 69.5 in (177 cm)
    Wheel Base 65.7 in (167 cm) 66 in (168 cm)
    Front Wheel Track 35.5 in (90 cm) 34.5 in (88 cm)
    Rear Wheel Track 38.0 in (97 cm) 38.5 in (98 cm)
    Ground Clearance 4.0 in (10 cm) 4.5 in (11 cm)
  • Power
      MY24 Freedom RXV Gas MY24 Freedom RXV ELiTE Lithium
    Power Source 4-Cycle, 9.15 cu in (150 cc) 56.7-Volt V AC
    Valve Train
    Fuel System
    Horsepower/kW 11.5 hp (8.6 kW) J1995 Standard 4.4 hp (3.3 kW) Continuous
    Electrical System Brushless DC Internal Starter Generator 56-Volt AC
    Key/Pedal Start Pedal Pedal
    Air Cleaner
    Lubrication
    Cooling System
    Oil Filter
    Fuel Capacity
    Speed Controller N/A 235-amp Solid-State AC Controller
    Drivetrain Continuously Variable Transmission (CVT) Motor Shaft Direct Drive
    Transaxle Differential with Helical Gears Limited Slip Differential
    Gear Selection Forward-Reverse Dash Mounted Forward-Neutral-Reverse
    Rear Axle Ratio 11:47:1 (Forward) 14:35:1 (Reverse) 16.99:1
    Batteries (Qty/Type) One, 12-Volt Maintenance-Free ELiTE 2.2, 56V Lithium
    Battery Charger N/A ELiTE Light World Charger 120/230 VAC, 10' DC Cord
  • Performance
      MY24 Freedom RXV Gas MY24 Freedom RXV ELiTE Lithium
    Dry Weight 676 lb (307 kg) 615 lb (279 kg)
    Curb Weight 692 lb (314 kg) 662 lb (300 kg)
    Load Capacity 500 lb (227 kg) (2 Passenger) or 800 lb (360 kg) (4 Passenger) 500 lb (227 kg) (2 Passenger) or 800 lb (360 kg) (4 Passenger)
    Outside Clearance 19.0 ft (5.8 m) 19.2 ft (5.8 m)
    Speed 19 mph ± 0.5 mph (31 kph ± 0.8 kph) 19.0-0.5 mph (30.6 kph-0.8 kph)
    Range
  • Steering & Suspension
      MY24 Freedom RXV Gas MY24 Freedom RXV ELiTE Lithium
    Steering Double-Ended Rack and Pinion Double-Ended Rack and Pinion
    Suspension Front: Independent A-Arm Coil-Over Shock, Rear: Mono-Leaf Spring With Hydraulic Shocks Front: Independent A-Arm Coil-Over Shock, Rear: Mono-Leaf Spring With Hydraulic Shocks
    Service Brake Rear Wheel Mechanical Self-Adjusting Drums Induction Motor
    Parking Brake Self-Compensating, Single Point Engagement Automatic Electro-Magnetic
    Tires 18 x 8.50-8 (4-ply rated) 18 x 8.50-8 (4-ply rated)
  • Body & Chassis
      MY24 Freedom RXV Gas MY24 Freedom RXV ELiTE Lithium
    Frame Welded Steel with Durashield Powder-Coat Protection Welded Steel with Durashield Powder-Coat Protection
    Body & Finish Injection Molded TPO Injection Molded TPO

    • *Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

Available Powertrains

Explore our industry-leading powertrains – each with unique advantages to enhance your life.

  • Gas Powertrain Icon

    EX1 Gas Engine

    Purpose-built for golf carts, the EX1 delivers smooth acceleration, best-in-class fuel economy, and a refined, quiet ride.

    Learn More
  • Electric Powertrain Icon

    ELiTE Lithium Powertrain

    Powered by Samsung SDI technology, ELiTE lithium batteries offer zero maintenance, fast charging, and consistent, long-lasting power.

    Learn More
