MY24 Valor

$8,649
Overview
Powertrains
Models
Valor Matte Green
Valor 2

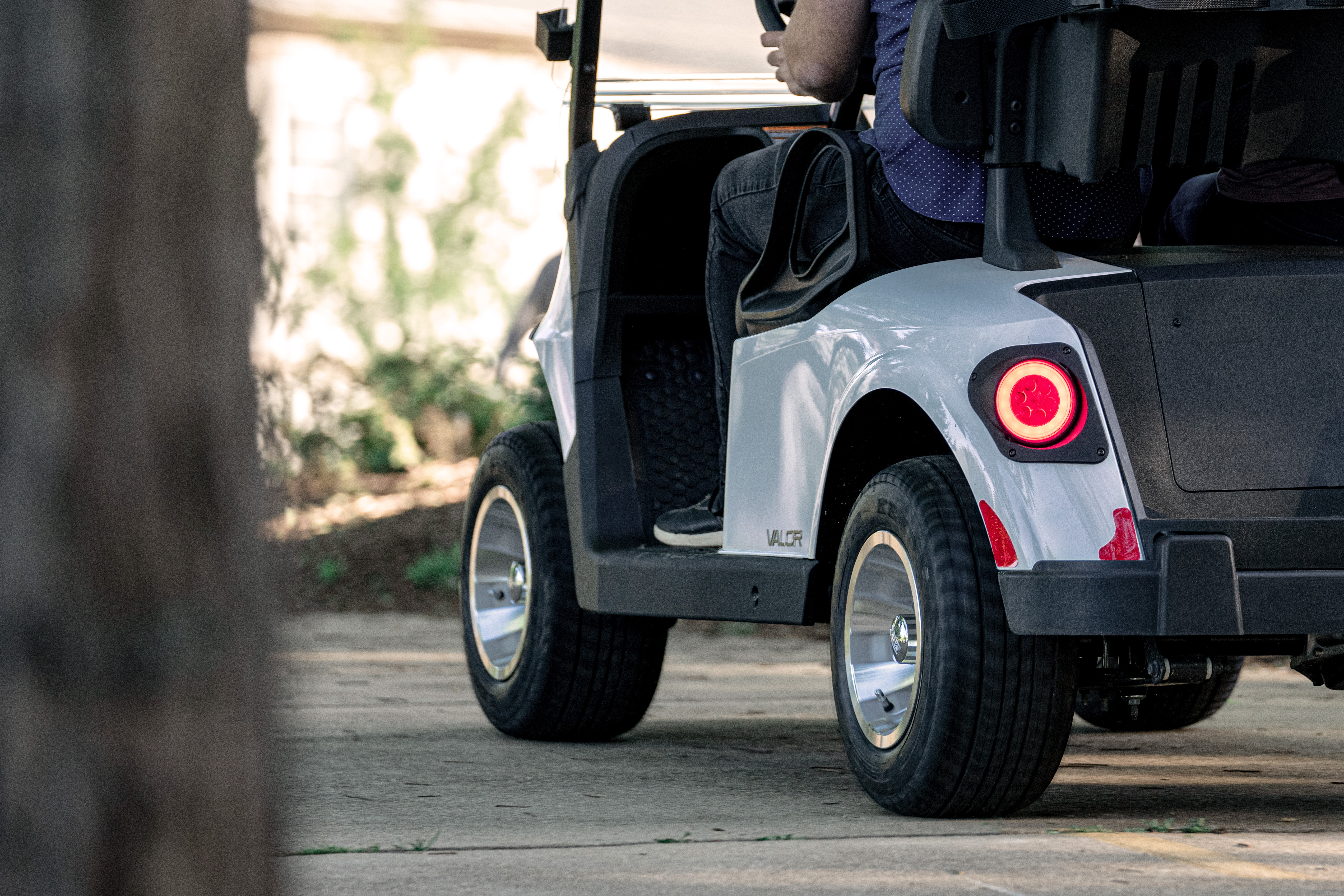

MY24 Valor

Shown on MY24 Valor Gas

Color: Platinum

Explore Available Models
Search Inventory
  • Great For...
    Golf or Retirement Community, Neighborhood or Community Use, Second Home or Vacation Home
  • Starting MSRP
    $8,649
  • Powertrains
    Gas 48V
  • Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
Explore Specs

MY24 Valor Specifications

Explore the details that'll give your golfers a superior experience on the course.

  • Dimensions
      MY24 Valor Gas MY24 Valor 48V
    Overall Length 94.5 in (240 cm) 94.5 in (240 cm)
    Overall Width 47 in (119 cm) 47.0 in (119 cm)
    Overall Height (w/o Roof) 48.5 in (121 cm) 47.5 in (126 cm)
    Overall Height (w/ Roof) 71 in (178 cm) 70 in (178 cm)
    Wheel Base 65.7 in (167 cm) 66.0 in (168 cm)
    Front Wheel Track 35.5 in (90 cm) 35.5 in (90 cm)
    Rear Wheel Track 38 in (97 cm) 38 in (97 cm)
    Ground Clearance 4 in (10 cm) 4.5 in (11 cm)
  • Power
      MY24 Valor Gas MY24 Valor 48V
    Power Source 4-Cycle, 9.15 cu in (150 cc) 48 Volt DC
    Valve Train
    Fuel System
    Horsepower/kW 11.5 hp (8.6 kW) J1995 Standard 4.4 hp (3.3 Kw) Continuous
    Electrical System Brushless DC Internal Starter Generator 48 Volt
    Key/Pedal Start Pedal Pedal
    Air Cleaner
    Lubrication
    Cooling System
    Oil Filter
    Fuel Capacity
    Speed Controller N/A 250 Amp Solid State Controller
    Drivetrain Continuously Variable Transmission (CVT) Motor Shaft Direct Drive
    Transaxle Differential with Helical Gears Limited Slip Differential
    Gear Selection Forward-Reverse Forward-Neutral-Reverse
    Rear Axle Ratio 11.47:1 (Forward) 14.35:1 (Reverse) 16.99:1
    Batteries (Qty/Type) One, 12 Volt Maintenance Free Four, 12 Volt Deep Cycle
    Battery Charger N/A N/A
  • Performance
      MY24 Valor Gas MY24 Valor 48V
    Dry Weight 676 lb (307 kg) 635 lb (257 kg)
    Curb Weight 692 lb (314 kg) 935 lb (411 kg)
    Load Capacity 800 lb (364 kg) 800 lb (360 kg)
    Outside Clearance 19 ft (5.8m) 19 ft (5.8 m)
    Speed 19.0 mph ± 0.5 mph (31.0 kph ± 0.8 kph) 19 mph ± 0.5 mph (31 kph ± 0.8 kph)
    Range
  • Steering & Suspension
      MY24 Valor Gas MY24 Valor 48V
    Steering Double Ended Rack & Pinion Double Ended Rack & Pinion
    Suspension Independent A-Arm Coil Over Shock (Front) - Mono-Lead Springs with Hydraulic Shocks (Rear) Independent A-Arm Coil Over Shock (Front) - Mono-Lead Springs with Hydraulic Shocks (Rear)
    Service Brake Rear Wheel Mechanical Self-Adjusting Drum Induction Motor
    Parking Brake Self-Compensating, Single Point Engagement Automatic Electro-Magnetic
    Tires 20 x 8 -10 Turf Tire on Black Wheel 20 x 8 -10 Turf Tire on Black Wheel
  • Body & Chassis
      MY24 Valor Gas MY24 Valor 48V
    Frame Welded Steel with Powder-Coat Protection Welded Steel with Powder-Coat Protection
    Body & Finish Injection Molded TPO Injection Molded TPO

    • *Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

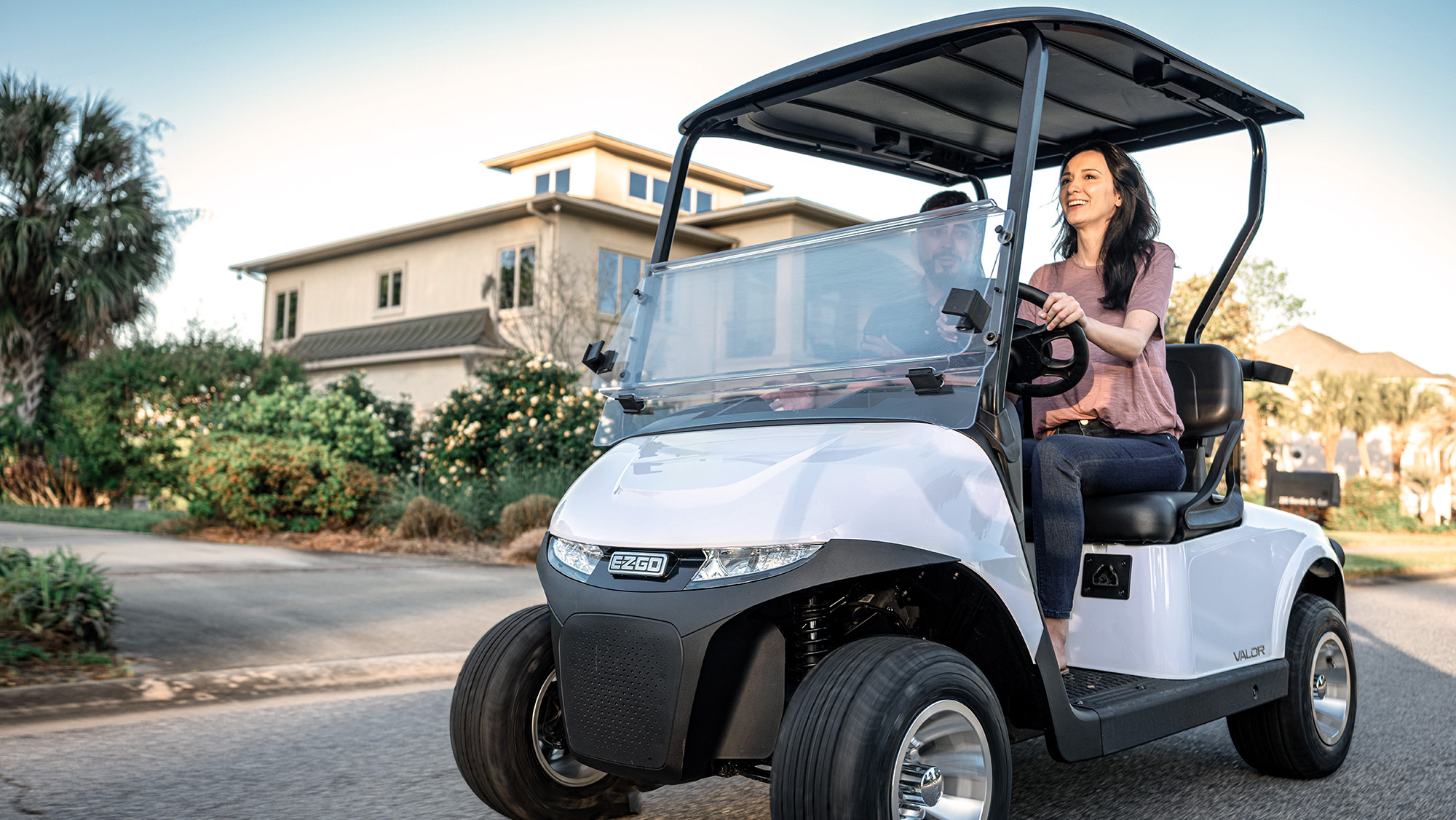

Available Powertrains

The E-Z-GO Valor offers two powertrains that feature industry-leading perks that will help you explore near and far.

  • Gas Powertrain Icon

    EX1 Gas Engine

    Purpose-built for golf carts, the EX1 delivers smooth acceleration, best-in-class fuel economy, and a refined, quiet ride.

    Learn More
  • Electric Powertrain Icon

    48V AC

    A classic choice for dependable performance, the 48V lead-acid system delivers reliable power & a smooth, confident ride.
