MY24 Valor 6

Overview
Powertrains
Models

MY24 Valor 6

$10,715
Overview
Powertrains
Models
Express 6 Valor Cruiser
Valor 6

MY24 Valor 6

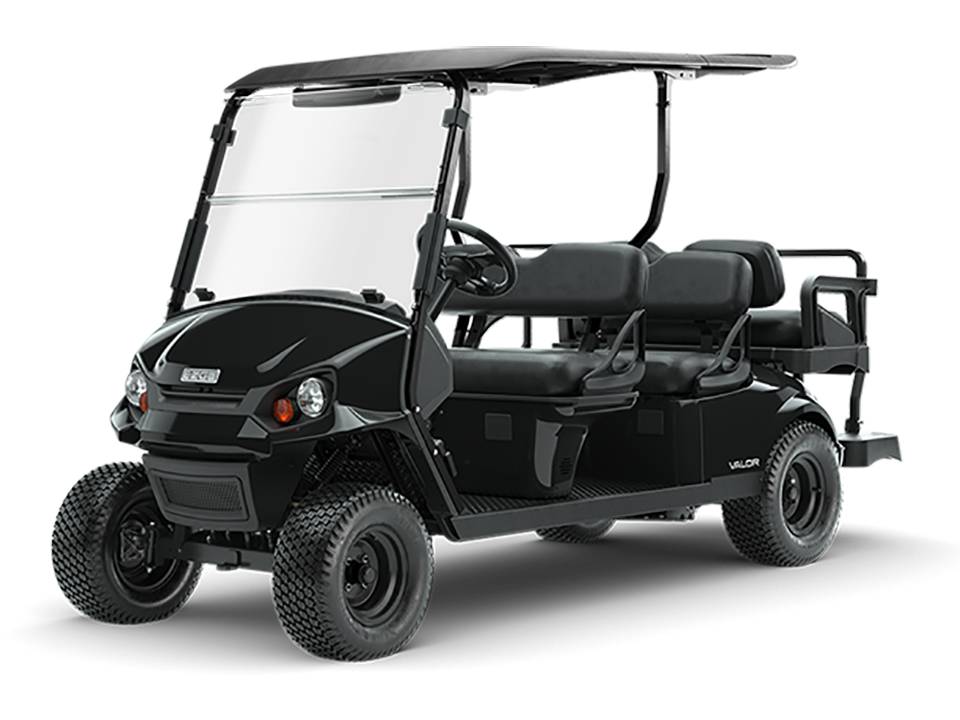

Shown on MY24 Valor 6 48V

Color: Black

Explore Available Models
Search Inventory
  • Great For...
    Neighborhood or Community Use
  • Starting MSRP
    $10,715
  • Powertrain
    48V
  • Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
Explore Specs

MY24 Valor 6 Specifications

Explore the details that'll give your golfers a superior experience on the course.

  • Dimensions
      MY24 Valor 6 48V
    Overall Length 141.5 in (359 cm)
    Overall Width 45.88 in (117 cm)
    Overall Height (w/o Roof) 48.38 in (123 cm)
    Overall Height (w/ Roof) 72.63 in (184 cm)
    Wheel Base 94 in (239 cm)
    Front Wheel Track 36.25 in (92 cm)
    Rear Wheel Track 36.25 in (92 cm)
    Ground Clearance 5.5 in (14 cm)
  • Power
      MY24 Valor 6 48V
    Power Source 4-12 V Lead Acid Batteries
    Valve Train
    Fuel System
    Horsepower/kW N/A
    Electrical System 48 V Primary
    Key/Pedal Start Pedal
    Air Cleaner
    Lubrication
    Cooling System
    Oil Filter
    Fuel Capacity
    Speed Controller 350 Amp
    Drivetrain Motor Shaft Direct Drive
    Transaxle Differential with helical gears
    Gear Selection Dash Mounted FNR/key switch
    Rear Axle Ratio 16.99:1 (Forward)
    Batteries (Qty/Type) 4-12 V Lead Acid Batteries
    Battery Charger 48 V 650 W SC-48 (Delta Q) Charger, 3 m charging cord
  • Performance
      MY24 Valor 6 48V
    Dry Weight 994 lb (452 kg) (without batteries)
    Curb Weight 1322 lb (601 kg)
    Load Capacity 1200 lb (544 kg)
    Outside Clearance 32.05 ft (9.8 m)
    Speed 19.5 Mph (31.4 Kph)
    Range
  • Steering & Suspension
      MY24 Valor 6 48V
    Steering Self-compensating reduction rack and pinion
    Suspension Leaf springs with hydraulic shock absorbers
    Service Brake Dual rear wheel mechanical self-adjusting drum
    Parking Brake Self-compensating, single point engagement
    Tires Kenda K500 20x8-10
  • Body & Chassis
      MY24 Valor 6 48V
    Frame Welded steel with DuraShieldTM powder coat and e-coat
    Body & Finish Injection Molded TPO

    • *Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

Powertrains

shouldn't be required

  • Electric Powertrain Icon

    48V AC

    A classic choice for dependable performance, the 48V lead-acid system delivers reliable power & a smooth, confident ride.

    Learn More
